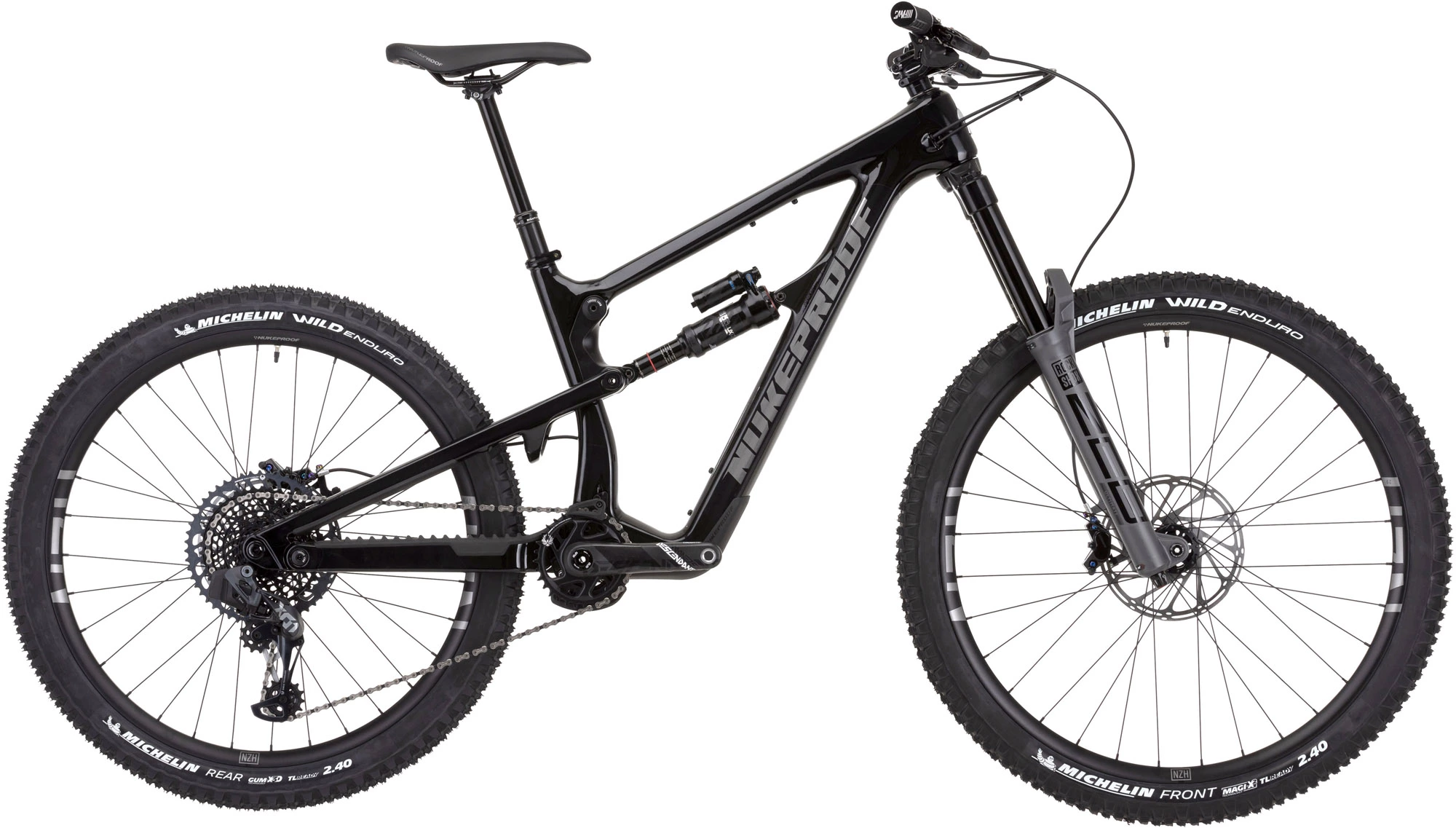

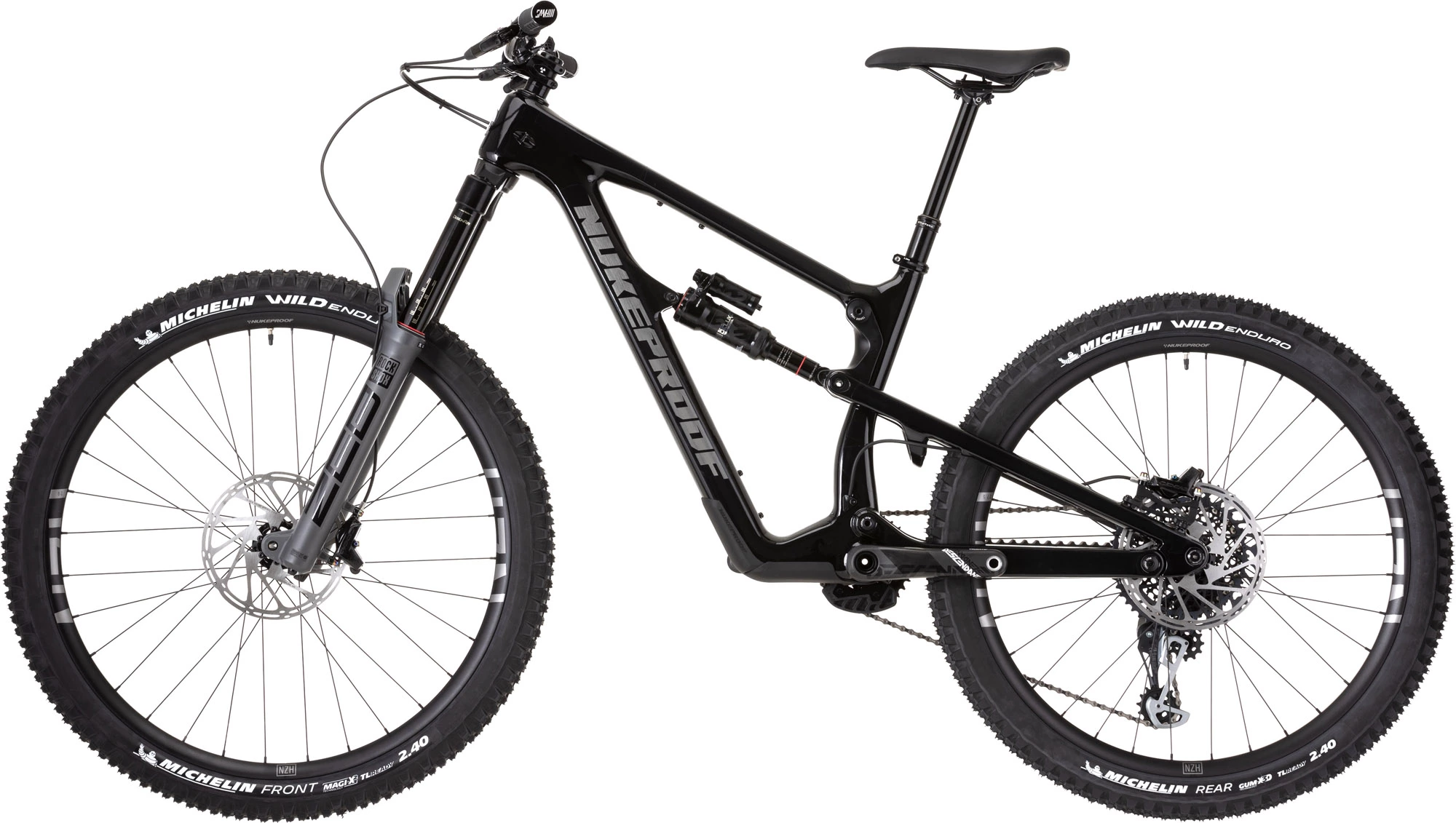

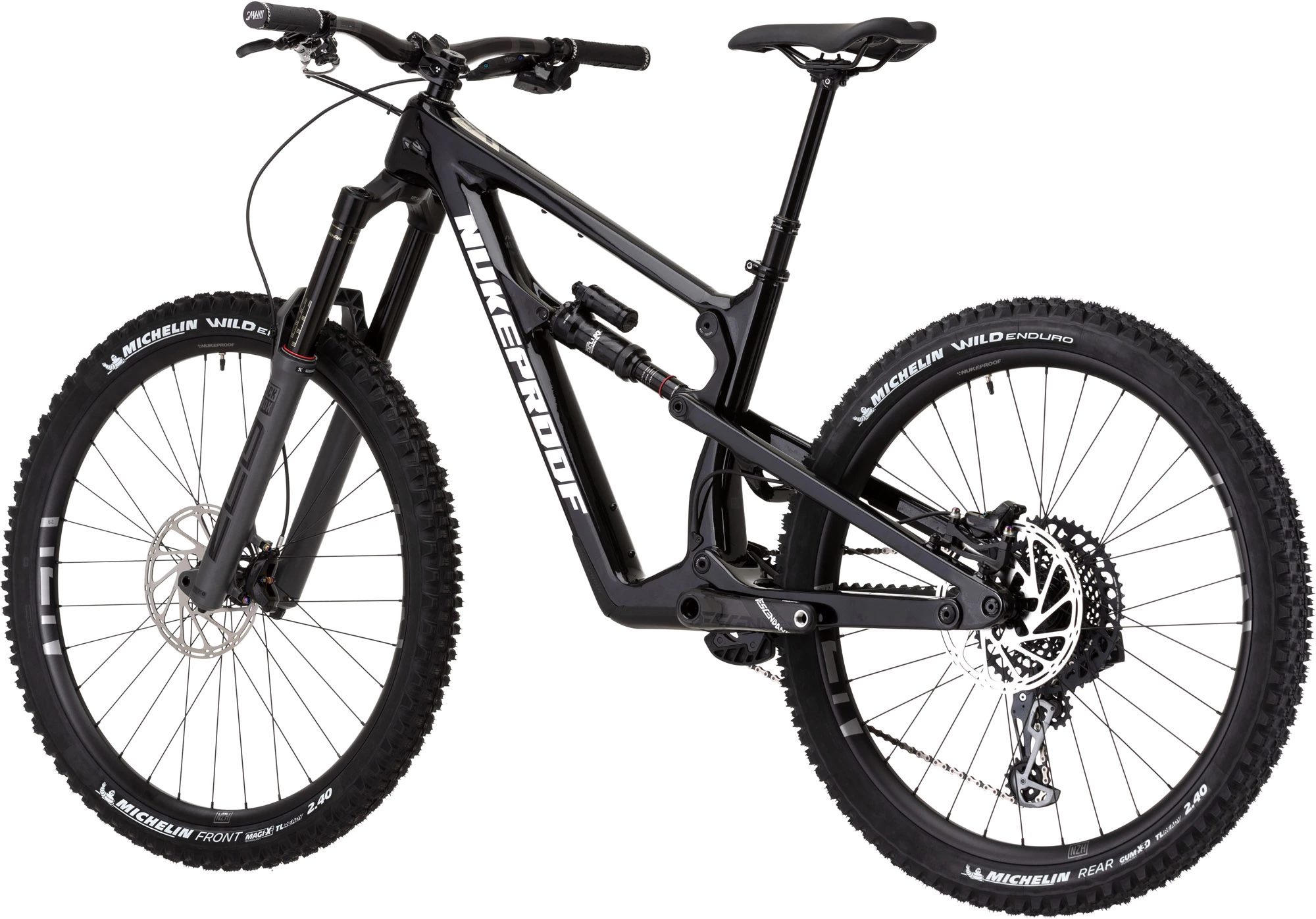

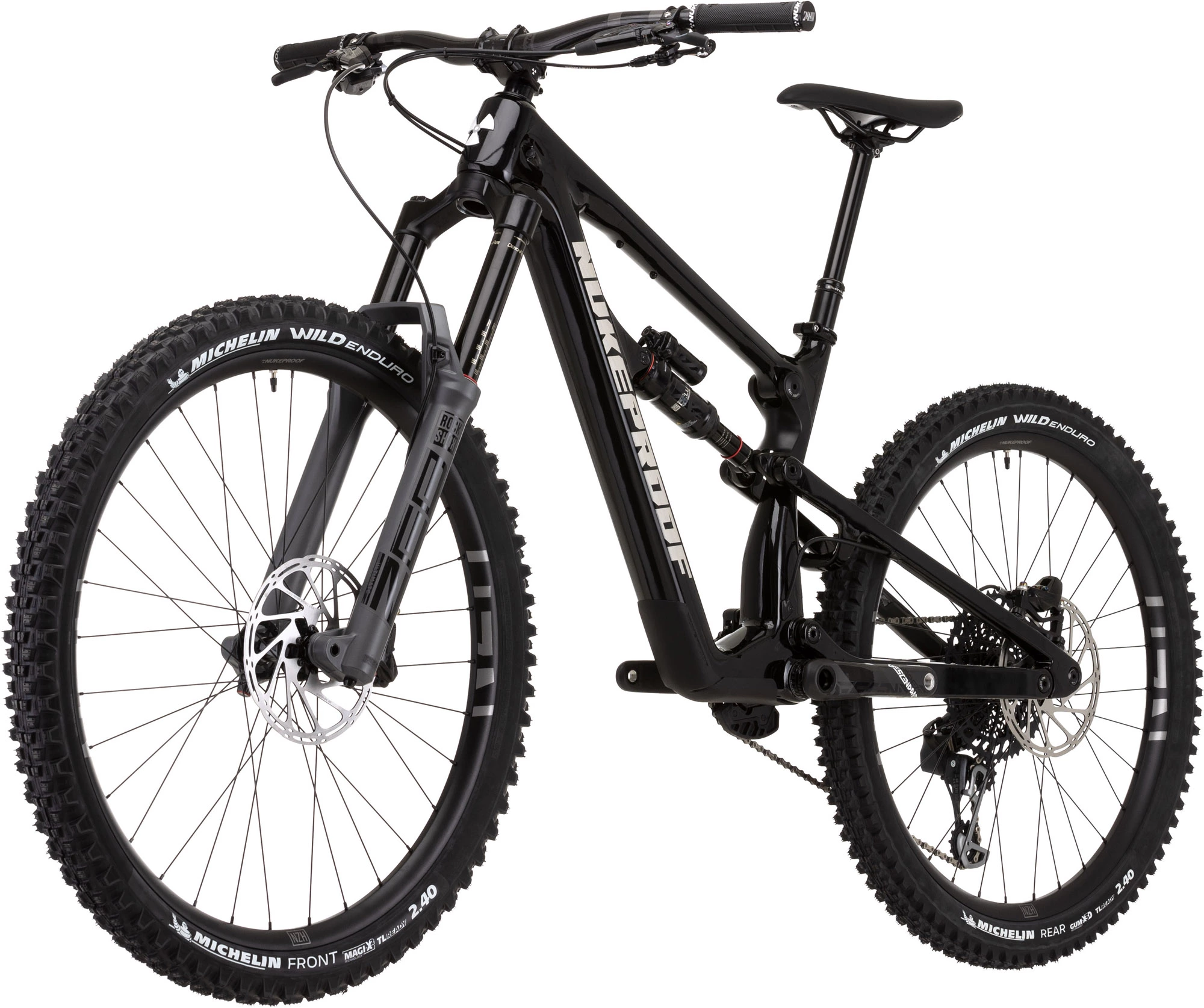

Nukeproof Mega 297 RS Carbon Bike (X01 Eagle)

The Mega 297 RS Carbon features a 170mm-travel RockShox ZEB Ultimate suspension fork and Super Deluxe Ultimate rear shock that is ideal for enduro racetracks and all-mountain terrain.

Nukeproof Horizon V2 Wheels and Horizon Carbon Handlebars

This exceptional race bike is kitted out with SRAM’s top-level XO1 Eagle 12-Speed groupset with strong, lightweight and stylish SRAM Descendant Carbon cranks, a wide-ranging 10-52 Tooth cassette and powerful SRAM Code RSC hydraulic disc brakes. It also rolls upon Tubeless Ready Nukeproof Horizon V2 wheels wrapped in fast-rolling, high-grip GUM-X Tubeless Michelin Wild Enduro tyres. And it is armed with a quality Nukeproof Horizon finishing kit that includes Nukeproof Horizon Carbon handlebars and a Bikeyoke Revive Stealth dropper seatpost.

The MegaV4: Born Through Evolution, Not Revolution.

For over 10 years, Nukeproof’s best-selling model, the Mega has been racking up awards on Enduro stages and in the press around the world. With 4 Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing. However, they never rest on their laurels with the introduction of the 4th generation Mega – Now available in an all-new mixed wheel size platform.

The Mega V4 is now available for 27.5”, 29” or new Mixed (Front 29”/Rear 27.5” wheel sizes) wheel setups, with each frame design tailored around each wheel size. The new mixed platform uses a 29” wheel up front to maximise grip and rolling efficiency whilst the 27.5” wheel out back, ensures nimble handling for manoeuvrability.

Designed as an evolution of the ultimate Enduro bike, the Mega V4 has been fully reimagined to offer optimised sizing/fit, improved Geometry and suspension kinematics on a brand-new all-carbon chassis. Most importantly you can now fit a water bottle inside the main front triangle.

Full-Suspension Carbon Frame Enduro Race Bike

To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The carbon swingarms help reduce the unsprung weight on the rear of the bike. It is available for 27.5”, 297 or 29” wheel sizes. These are totally different, compromise-free frames that were designed and developed at the same time. Each frame is simply tailored around each wheel size so that you can get the most out of every ride.

Updated Sizing and Geometry

Whilst humans may not have changed size much in recent years; the bikes they choose to ride most certainly have. To ensure a perfectly dialled fit Nukeproof now offer 297 bikes in S, M, or L sizes and 290 bikes in M, L, XL or XXL.

Lower, longer, steeper and slacker. The Mega geometry is now designed around the saddle offset for each size to optimise seated weight distribution. This results in steeper seat angles across the board but especially on larger sizes for taller riders. This in turn results in longer reach figures to ensure a comfortable cockpit on each size. To further aid the perfect fit Nukeproof have also used shorter seat tubes which are designed to maximise seat post insertion depths. Finally, all Mega bikes are now designed to use short offset forks to further improve both climbing and descending capabilities.

Progressive and Supportive Suspension Platform

To step-change the Mega’s suspension design Nukeproof went back to the drawing board and started afresh. They have redesigned the Mega 4 bar horst linkage to be super supple over small bumps, progressive and supportive throughout the mid-stroke for support when pedalling, cornering and pumping, with increased end stroke leverage to allow more tuning options with volume spacers. The kinematic is designed to have higher levels of anti-squat for climbing gears but this reduces as you drop down the cassette. The result is a bike that is more confidence-inspiring everywhere on the hill. It behaves itself on the climbs yet can still be thrashed through the roughest and most technical terrain on the way back down.

Features:

Frame: Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS
Fork: RockShox Zeb Ultimate Charger 2.1 RC2 170mm, 44mm Offset, BOOST, Debonair, Grey
Shock: RockShox Super Deluxe Ultimate RCT, Custom LIN L1 HOTDOG S320 tune, 230×62.5mm, Bearing End, 2 bottomless tokens fitted
Front Wheel: Nukeproof Horizon V2, 29″, 6 Bolt, 110x15mm
Rear Wheel: Nukeproof Horizon V2, 27.5″, 6 Bolt, XD Driver, 148x12mm
Tyres: Front: Michelin Wild Enduro 29″ x 2.4, GUM-X TS TLR, Rear: Michelin Wild Enduro 27.5″ x 2.4, GUM-X TS TLR
Crankset: SRAM Descendant Carbon Eagle 12-Speed, 170mm, 32T, B148, DUB
Shifter: SRAM Eagle AXS 12-Speed, Black
Rear Derailleur: SRAM XO1 AXS Eagle 12-Speed, Black
Chain: SRAM GX Eagle 12-Speed
Cassette: SRAM XO1 Eagle 12-Speed, CS XG1295 EAGLE 10-52T
Chain Guide: MRP 1x AMG V2, 32-38T, ISCG-05, Black
Brakes: SRAM Code RSC, Sintered pads
Front Rotor: SRAM Centreline, 200mm
Rear Rotor: SRAM Centreline, 200mm
Handlebars: Nukeproof Horizon Carbon V2 25mm Rise, Width – S780mm, M780mm, L800mm
Stem: Nukeproof Horizon, 45mm, Black
Saddle: Nukeproof, Black
Seatpost: Bikeyoke Revive with Triggy 1x Remote, 31.6mm; S:125mm drop; M:160mm drop; L:185mm drop
Headset: Nukeproof, 44-56 IITS
Grips: Nukeproof Sam Hill Signature
Weight: 14.65kg Medium Tubeless

Key Information:

Material: Ultra Strong T700/800 Monocoque Carbon Fibre
Fork Travel: 170mm
Axle to Crown: 586mm
Fork Offset: 44mm
Rear Travel: 165mm
Wheels Size: Front 29″ / Rear 27.5″
Max Tyre Size: 2.6″
Recommended Shock Sag (Measured seated): 30%
Shock Size: 230×62.5mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS56/40 – B8
Bearings Required: 4x F6802 LLU MAX, 4x 6902 LLU MAX, 2x F6902 LLU MAX-EA
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 36.4mm
BB: Threaded 73mm BSA
Rear Hub: Boost 148x12mm
Rear Axle: SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
Chain Guide: ISCG05
Brake Mount: 180mm Direct Post
Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Bitte beachten: Der Hersteller behält es sich vor, die auf dieser Seite angezeigte Spezifikation zu ändern.
